Dierks Anchor Systems & Anchor Pulleys
Save Money By Ordering A System


Dierks Center Mount Side Pull System

Dierks Center Mount
Side Pull System - AR1TP2S

Includes: remote bracket RB864, two side pulleys PB4 and a center mount transom anchor arm AR1TP2. See pics 1, 2 & 3 below.

Price $194.95

Quantity:

The pulleys have a 1/4" mounting hole for a 20 thread count bolt. The end may have to
be cut off to keep the bolt from interfering with the rope. Dress bolt end with file and
use LockTite when mounting pulley.

Dierks Side Mount Side Pull Systemdierks

Dierks Side Mount
Side Pull System - SA5TP2S

Allows use of motor.

Includes: remote bracket RB864, two side pulleys PB4 and a side mount
transom anchor arm SA5TP2.
See pics 4 & 6 below.

Price $199.95

Quantity:


Or Call 619.784.6447

9am to 6pm PST M-F To Order

Dierks Foot Release
Drift Boat Anchor System

foot release
AR1FM6S - Foot Release System
compare to Bo's system

Price $229.95

Quantity:


This is Dierks version of the famous Bo's Foot Release system. It consists of the FP08- Foot Release Pedal, the BM4B- Bottom Mount Pulley Block and the AR1FM6-Center Mount Anchor Arm with the FM6 Front Mount Pulley (see the components below.)

The Foot Pedal, of course, mounts at your feet with the rope passing through it along the bottom of the boat (I would run it through plastic pipe) to the Bottom Mount Pulley Block which is mounted at the bottom of the transom, weld or bolt. Then up to the pulley on the anchor arm which extends back enough to clear the transom.

Quality Components - Works Great!


Please read for Dierks Anchor System Installations

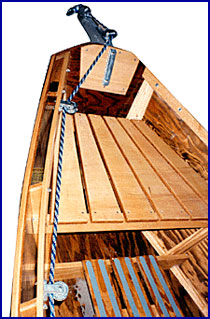

Pictures 1, 2 and 3 show a Dierks Anchor System installed on a wood boat with the center mount Anchor Release AR-1-TP-2, hand piece RB864 and 2 PB-4 pulleys. Pictures 4 shows an installation on an aluminum boat with the Side Anchor Release SA-5-TP-2, hand piece RB864 and 1 PB-4 pulley (2 pulleys is normal). Picture 5 shows the Bow Anchor Release BR-32. Picture 6 shows a side mount anchor system installed on a fiberglass boat. The Side Anchor Release allows the use of a motor.

Another option for an anchor system is to use either of the anchor arms with jam cleats. Model numbers are AR-12 and SA-52. These would require turning around and probably standing up to hoist the anchor.


Click on images for larger picture.

1
dierks
Center Mount Arm & PB 4 Pulleys

2
dierks
Side Pull System

3
dierks
Center Mount Arm AR1TP2

4
dierks
Side Mount/Side Pull System

5
dierks
Bow Anchor Arm w/Cleat BR32

6
dierks
Side Mount/Side Pull System

top



More Dierks Anchor System Conversion Components

Call 619.784.6447 9am to 6pm PST M-F To Order!

Convert your center mount anchor arm to a foot release system with these parts.


foot pedal
Dierks Foot Release Pedal
for Bo's type system - FP08

Price $99.95

Quantity:




bottom pulley
Dierks Bottom Mount
Anchor Pulley Block
for Bo's type system welded or
bolted to bottom of transom - BM4B

Price $26.95

Quantity:




arm
Dierks Anchor Pulley
for center mount arm
for Bo's type system - FM6

Price $35.95

Quantity:


Side Pull Conversion Kit

pulleys



Convert Your Anchor Arm to the Side Pull System

If you have a Dierks Anchor Arm with Jam Cleat AR12, you can convert it to the Side Pull System (see pictures above) with these parts. Just replace the Jam Cleat on the anchor arm with the TP2 pulley and put the jam cleat on the Hand Piece and mount as shown in the pictures above, mount the PB4 pulleys on the gunnel and you will have the Cadilac of anchor systems. Works with either the Side mount or Center mount anchor arms. RB8642



Price $125.95

Quantity:



Pulley Replacement Kit

pullies

PS246 - Need to replace the anchor system pulleys - this is it!
With HD Nylon wheels that
will last. 2 PB4 - 1 PB6 - 1 TP2

Price $71.95

Quantity:

Sled Bow Roller System

bow roller side

SR4TP2LS

Dierks Sled Bow Roller System
Want a bow roller with the line
running down the right gunnel &
jam cleat on right near seat.
Length 11.75 inches
This is it.1 SR4 - 2 PB4 - 1 JC4 1 TP2L

Price $134.95

Quantity:

SR4TP2LXLS - Extra Long

Dierks Sled Bow Roller System
Want a bow roller with the line
running down the right gunnel &
jam cleat on right near seat.
Length 15.75 inches
This is it.1 SR4XL - 2 PB4 - 1 JC4 1 TP2L

Price $139.95

Quantity:

SR4TP2S

Dierks Sled Bow Roller System
Want a bow roller with the line
running down the left gunnel &
jam cleat on left near seat.
Length 11.75 inches
This is it.1 SR4 - 2 PB4 - 1 JC4 1 TP2

Price $129.95

Quantity:

SR4TP2XLS - Extra Long

Dierks Sled Bow Roller System
Want a bow roller with the line
running down the left gunnel &
jam cleat on left near seat.
Length 15.75 inches
This is it.1 SR4XL - 2 PB4 - 1
JC4 1 TP2

Price $134.95

Quantity:



Drift Boat Bow
Anchor Arm System

Bow anchor system

BR3TP2LS

Dierks Bow Anchor Arm System
Want a bow anchor arm with the
line running down the right gunnel &
jam cleat on right near seat.

This is it.1-BR3, 2-PB4,
1-JC4, 1-TP2L

Price $159.95

Quantity:

BR3TP2LSR

Dierks Removable
Bow Anchor System
For the right gunnel.

1-BR3R, 2-PB4, 1-JC4, 1-TP2L

Price $185.95

Quantity:

BR3TP2S

Dierks Bow Anchor System
For the left gunnel.

1-BR3, 2-PB4, 1-JC4, 1-TP2

Price $155.95

Quantity:

BR3TP2SR

Dierks Removable
Bow Anchor System
For the left gunnel.

1-BR3R, 2-PB4, 1-JC4, 1-TP2

Price $180.95

Quantity:

Dierks Anchor Pulleys & Components


   These components are made from 356 alloy aluminum with
nylon self lubricating pulleys that will outlive aluminum pulleys
and not wear out the shafts.

dierks

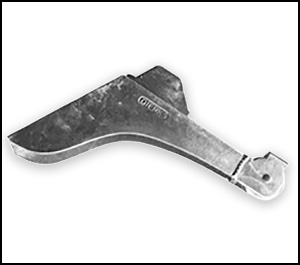

Dierks Center Mount Anchor Release
with Jam Cleat - AR12

Price $84.95

Quantity:


Dierks Center Mount Anchor Release
with Pulley - AR1TP2

Price $95.95

Quantity:

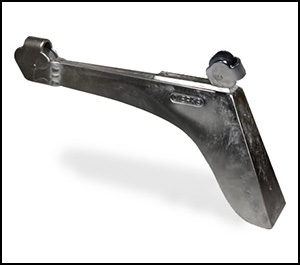

AR1FM6 - Center Mount Anchor Arm
With FM-6 Pulley for Bo's type system

Price $104.95

Quantity:



The Dierks Side Anchor Release is used with a motor.

dierks

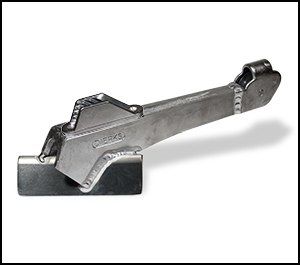

Dierks Side Mount Anchor Release with
Jam Cleat - SA52

Price $92.95

Quantity:


Dierks Side Mount Anchor Release
with Pulley - SA5TP2

Price $101.95

Quantity:
dierks

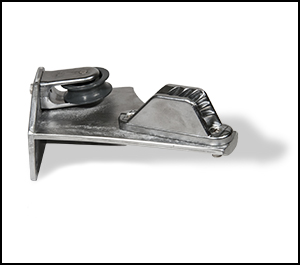

Dierks Remote Bracket - RB864

Mounts on right
Base Plate - RB8
2" Pulley - PB6
Jam Cleat - JC4

Price $65.95

Quantity:

LEFT SIDE MOUNTS AVAILABLE ALSO

dierks

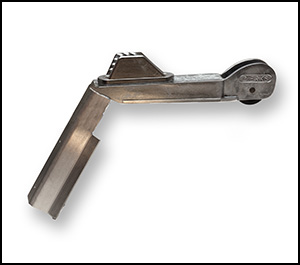

Dierks Bow Anchor Release
with Jam Cleat - BR32
see pictures 5 & 6 above.
Arm extends down 8.5" from top of bow.
Works great for stern anchor arm too!

Price $95.95

Quantity:

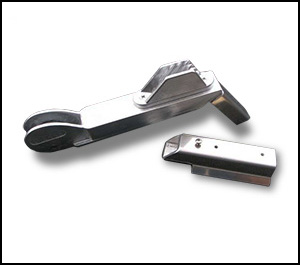

Dierks Bow Anchor Release
Also available with
removable arm - BR32R

Works great for stern anchor arm too!

Price $119.95

Quantity:


dierks

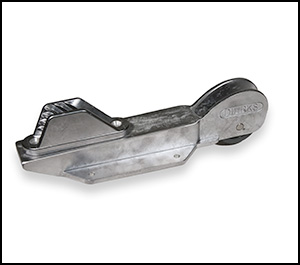

Dierks Sled Bow Roller
with Jam Cleat - SR42
Length is 11.75 inches

Price $70.95

Quantity:

Dierks Sled Bow Roller Extra Long
with Jam Cleat - SR42XL
Length is 15.75 inches

Price $81.95

Quantity:


dierks

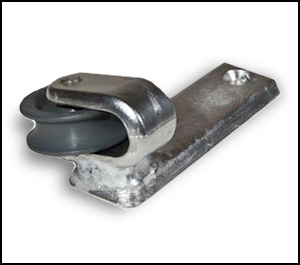

Dierks Top Pulley for
Anchor Arm - TP2

Price $26.95

Quantity:

tp2l

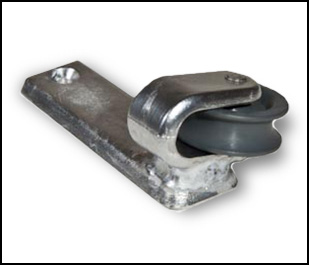

TP2L - Left Handed pulley used on bow
mounted anchor arms to route line
down the right gunnel

Price $29.95

Quantity:

The pulleys have a 1/4" mounting hole for a 20 thread count bolt. The end may have to
be cut off to keep the bolt from interfering with the rope. Dress bolt end with file and
use LockTite when mounting pulley.

dierks

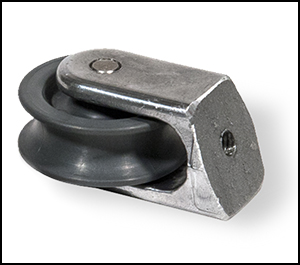

Dierks Anchor Pulley Blocks 1.75"
Angled Pulley - PB4

Price $17.95

Quantity:



Dierks Straight Anchor Pulley 1.75"
PB490

Price $17.95

Quantity:



dierks

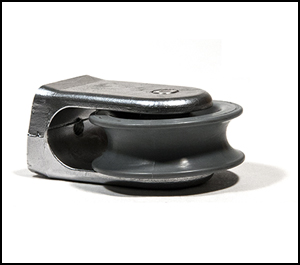

Dierks Anchor Pulley Block 2"
Angled
for Remote Bracket - PB6

Price $19.95

Quantity:



dierks

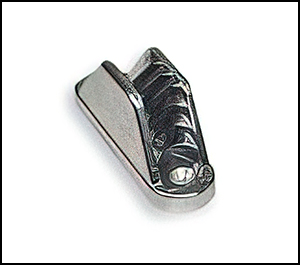

Dierks Jam Cleat for Anchor Arm
or Remote Bracket JC4

Price $17.95

Quantity:

Pulley Wheel Replacement Kits

Price $12.95 each

P175H-1 3/4" wheel w/Pin
& Screws

Quantity:

P200H-2" wheel w/Pin
& Screws

Quantity:
